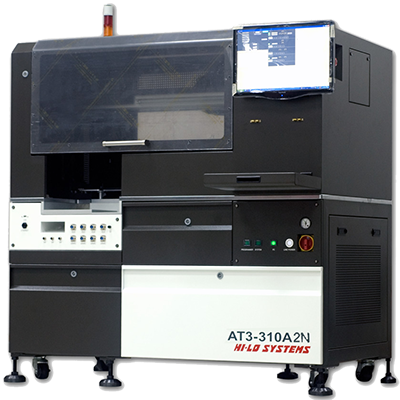

AT3-310A2N | Auto Programming System

AT3-310A2N is an automated programming system designed for high-performance and high-quality programming, targeted at the programming of large volumes. It can program up to 2500 units per hour thanks to 4 pick & place nozzles (depends on IC programming time). Thanks to it's design and precise vision positioning system, it is capable of handling 1.5mm x 1.5mm devices such as WLCSP.
The system is equipped with 4 units of ALL-200G or ALL-300G2 programmers and supports up to 64 sockets.
I/O options are flexible, supporting tray/tape/tube.
AT3-310A2N | Auto Programming System
High throughput, high performance
Equipped with 4 nozzles, up to 2500 UPH (units per hour). Well balanced hardware design with optimized system parameters ensure the handling accuracy under high speed movement
New generation device programmer
Equipped with 4 units of ALL-200G or ALL-300G2 programmers.
Up to 64 device programmers simultaneously.
Support for a wide range of devices including MCU/MPU, EEPROM, eMMC, eMCP, SPI memory, NOR/NAND flash, FPGA, etc…
Precise vision positioning system
Carried camera (1.3M pixels) for socket positioning.
Fixed camera (3M pixels) for IC pick & place positioning.
Minimize the jam rate during handling as well as the possibility of lead bent. Capable of handling as small as 1.5mm x 1.5mm devices such as WLCSP.
New generation image processing core realizes fully auto vision positioning process
Smart operating software
All setup data such as IC type, socket type and position, are saved accordingly to achieve zero changeover time.
User friendly operating interface minimize the possibility of misoperation.
Provides detailed information of machine status, production status, warning, etc…
Detailed production reports and log files are saved for traceability
Package conversion
Package conversion between tray, tube and tape
Optional equipments
Laser marker, Label feeder, Pad printing system
